# Learning Curve¶

A learning curve shows the relationship of the training score vs the cross validated test score for an estimator with a varying number of training samples. This visualization is typically used two show two things:

1. How much the estimator benefits from more data (e.g. do we have “enough data” or will the estimator get better if used in an online fashion).
2. If the estimator is more sensitive to error due to variance vs. error due to bias.

Consider the following learning curves (generated with Yellowbrick, but from Plotting Learning Curves in the scikit-learn documentation): If the training and cross validation scores converge together as more data is added (shown in the left figure), then the model will probably not benefit from more data. If the training score is much greater than the validation score (as shown in the right figure) then the model probably requires more training examples in order to generalize more effectively.

The curves are plotted with the mean scores, however variability during cross-validation is shown with the shaded areas that represent a standard deviation above and below the mean for all cross-validations. If the model suffers from error due to bias, then there will likely be more variability around the training score curve. If the model suffers from error due to variance, then there will be more variability around the cross validated score.

Note

Learning curves can be generated for all estimators that have fit() and predict() methods as well as a single scoring metric. This includes classifiers, regressors, and clustering as we will see in the following examples.

## Classification¶

In the following example we show how to visualize the learning curve of a classification model. After loading a DataFrame and performing categorical encoding, we create a StratifiedKFold cross-validation strategy to ensure all of our classes in each split are represented with the same proportion. We then fit the visualizer using the f1_weighted scoring metric as opposed to the default metric, accuracy, to get a better sense of the relationship of precision and recall in our classifier.

import numpy as np

from sklearn.naive_bayes import MultinomialNB
from sklearn.model_selection import StratifiedKFold
from yellowbrick.model_selection import LearningCurve

# Load a classification data set

# Specify the features of interest and the target
target = "outcome"
features = [col for col in data.columns if col != target]

# Encode the categorical data with one-hot encoding
X = pd.get_dummies(data[features])
y = data[target]

# Create the learning curve visualizer
cv = StratifiedKFold(12)
sizes = np.linspace(0.3, 1.0, 10)

viz = LearningCurve(
MultinomialNB(), cv=cv, train_sizes=sizes,
scoring='f1_weighted', n_jobs=4
)

# Fit and poof the visualizer
viz.fit(X, y)

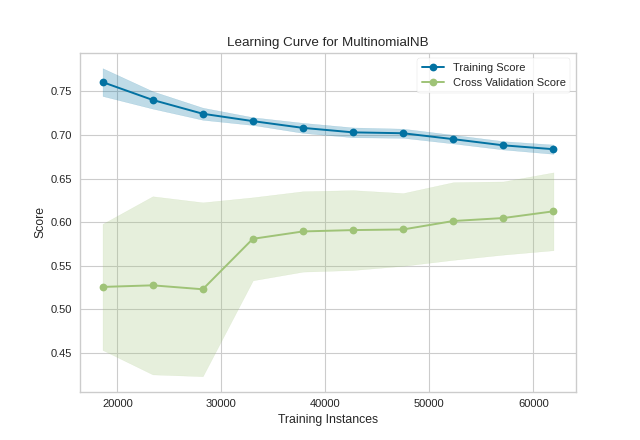

viz.poof() This learning curve shows high test variability and a low score up to around 30,000 instances, however after this level the model begins to converge on an F1 score of around 0.6. We can see that the training and test scores have not yet converged, so potentially this model would benefit from more training data. Finally, this model suffers primarily from error due to variance (the CV scores for the test data are more variable than for training data) so it is possible that the model is overfitting.

## Regression¶

Building a learning curve for a regression is straight forward and very similar. In the below example, after loading our data and selecting our target, we explore the learning curve score according to the coefficient of determination or R2 score.

from sklearn.linear_model import RidgeCV

# Load a regression dataset

# Specify features of interest and the target
features = [col for col in data.columns if col not in targets]

# Extract the instances and target
X = data[features]
y = data[targets]

# Create the learning curve visualizer, fit and poof
viz = LearningCurve(RidgeCV(), train_sizes=sizes, scoring='r2')
viz.fit(X, y)

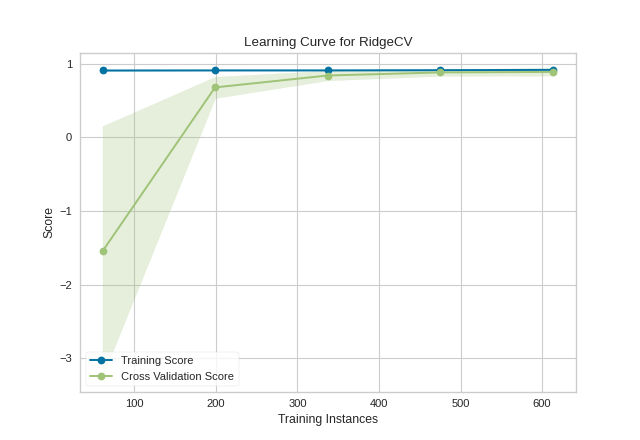

viz.poof() This learning curve shows a very high variability and much lower score until about 350 instances. It is clear that this model could benefit from more data because it is converging at a very high score. Potentially, with more data and a larger alpha for regularization, this model would become far less variable in the test data.

## Clustering¶

Learning curves also work for clustering models and can use metrics that specify the shape or organization of clusters such as silhouette scores or density scores. If the membership is known in advance, then rand scores can be used to compare clustering performance as shown below:

from sklearn.cluster import KMeans
from sklearn.datasets import make_blobs

# Create a dataset of blobs
X, y = make_blobs(n_samples=1000, centers=5)

viz = LearningCurve(
)

viz.fit(X, y)

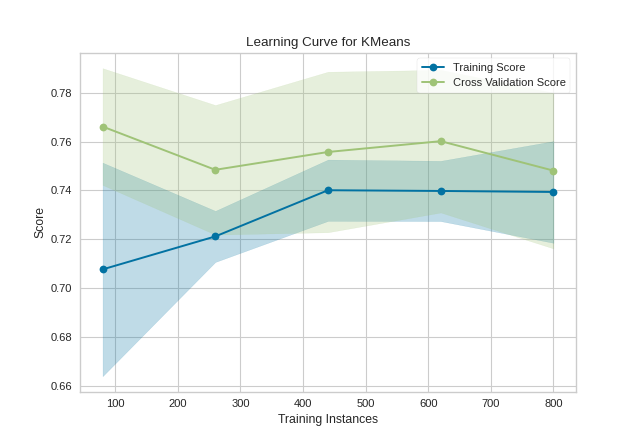

viz.poof() Unfortunately, with random data these curves are highly variable, but serve to point out some clustering-specific items. First, note the y-axis is very narrow, roughly speaking these curves are converged and actually the clustering algorithm is performing very well. Second, for clustering, convergence for data points is not necessarily a bad thing; in fact we want to ensure as more data is added, the training and cross-validation scores do not diverge.

This visualizer is based on the validation curve described in the scikit-learn documentation: Learning Curves. The visualizer wraps the learning_curve function and most of the arguments are passed directly to it.

## API Reference¶

Implements a learning curve visualization for model selection.

class yellowbrick.model_selection.learning_curve.LearningCurve(model, ax=None, groups=None, train_sizes=array([0.1, 0.325, 0.55, 0.775, 1. ]), cv=None, scoring=None, exploit_incremental_learning=False, n_jobs=1, pre_dispatch='all', shuffle=False, random_state=None, **kwargs)[source]

Bases: yellowbrick.base.ModelVisualizer

Visualizes the learning curve for both test and training data for different training set sizes. These curves can act as a proxy to demonstrate the implied learning rate with experience (e.g. how much data is required to make an adequate model). They also demonstrate if the model is more sensitive to error due to bias vs. error due to variance and can be used to quickly check if a model is overfitting.

The visualizer evaluates cross-validated training and test scores for different training set sizes. These curves are plotted so that the x-axis is the training set size and the y-axis is the score.

The cross-validation generator splits the whole dataset k times, scores are averaged over all k runs for the training subset. The curve plots the mean score for the k splits, and the filled in area suggests the variability of the cross-validation by plotting one standard deviation above and below the mean for each split.

Parameters: model : a scikit-learn estimator An object that implements fit and predict, can be a classifier, regressor, or clusterer so long as there is also a valid associated scoring metric. Note that the object is cloned for each validation. ax : matplotlib.Axes object, optional The axes object to plot the figure on. groups : array-like, with shape (n_samples,) Optional group labels for the samples used while splitting the dataset into train/test sets. train_sizes : array-like, shape (n_ticks,) default: np.linspace(0.1,1.0,5) Relative or absolute numbers of training examples that will be used to generate the learning curve. If the dtype is float, it is regarded as a fraction of the maximum size of the training set, otherwise it is interpreted as absolute sizes of the training sets. cv : int, cross-validation generator or an iterable, optional Determines the cross-validation splitting strategy. Possible inputs for cv are: None, to use the default 3-fold cross-validation, integer, to specify the number of folds. An object to be used as a cross-validation generator. An iterable yielding train/test splits. see the scikit-learn cross-validation guide for more information on the possible strategies that can be used here. scoring : string, callable or None, optional, default: None A string or scorer callable object / function with signature scorer(estimator, X, y). See scikit-learn model evaluation documentation for names of possible metrics. exploit_incremental_learning : boolean, default: False If the estimator supports incremental learning, this will be used to speed up fitting for different training set sizes. n_jobs : integer, optional Number of jobs to run in parallel (default 1). pre_dispatch : integer or string, optional Number of predispatched jobs for parallel execution (default is all). The option can reduce the allocated memory. The string can be an expression like ‘2*n_jobs’. shuffle : boolean, optional Whether to shuffle training data before taking prefixes of it based ontrain_sizes. random_state : int, RandomState instance or None, optional (default=None) If int, random_state is the seed used by the random number generator; If RandomState instance, random_state is the random number generator; If None, the random number generator is the RandomState instance used by np.random. Used when shuffle is True. kwargs : dict Keyword arguments that are passed to the base class and may influence the visualization as defined in other Visualizers.

Notes

This visualizer is essentially a wrapper for the sklearn.model_selection.learning_curve utility, discussed in the validation curves documentation.

The documentation for the learning_curve function, which this visualizer wraps.

Examples

>>> from yellowbrick.model_selection import LearningCurve
>>> from sklearn.naive_bayes import GaussianNB
>>> model = LearningCurve(GaussianNB())
>>> model.fit(X, y)
>>> model.poof()

Attributes: train_sizes_ : array, shape = (n_unique_ticks,), dtype int Numbers of training examples that has been used to generate the learning curve. Note that the number of ticks might be less than n_ticks because duplicate entries will be removed. train_scores_ : array, shape (n_ticks, n_cv_folds) Scores on training sets. train_scores_mean_ : array, shape (n_ticks,) Mean training data scores for each training split train_scores_std_ : array, shape (n_ticks,) Standard deviation of training data scores for each training split test_scores_ : array, shape (n_ticks, n_cv_folds) Scores on test set. test_scores_mean_ : array, shape (n_ticks,) Mean test data scores for each test split test_scores_std_ : array, shape (n_ticks,) Standard deviation of test data scores for each test split
draw(**kwargs)[source]

Renders the training and test learning curves.

finalize(**kwargs)[source]

Add the title, legend, and other visual final touches to the plot.

fit(X, y=None)[source]

Fits the learning curve with the wrapped model to the specified data. Draws training and test score curves and saves the scores to the estimator.

Parameters: X : array-like, shape (n_samples, n_features) Training vector, where n_samples is the number of samples and n_features is the number of features. y : array-like, shape (n_samples) or (n_samples, n_features), optional Target relative to X for classification or regression; None for unsupervised learning. self : instance Returns the instance of the learning curve visualizer for use in pipelines and other sequential transformers.
