PosTag Visualization

Parts of speech (e.g. verbs, nouns, prepositions, adjectives) indicate how a word is functioning within the context of a sentence. In English as in many other languages, a single word can function in multiple ways. Part-of-speech tagging lets us encode information not only about a word’s definition, but also its use in context (for example the words “ship” and “shop” can be either a verb or a noun, depending on the context).

The PosTagVisualizer is intended to support grammar-based feature extraction techniques for machine learning workflows that require natural language processing. The visualizer can either read in a corpus that has already been sentence- and word-segmented, and tagged, or perform this tagging automatically by specifying the parser to use (nltk or spacy). The visualizer creates a bar chart to visualize the relative proportions of different parts-of-speech in a corpus.

Visualizer

PosTagVisualizer

Quick Method

postag()

Models

Classification, Regression

Workflow

Feature Engineering

Note

The PosTagVisualizer currently works with both Penn-Treebank (e.g. via NLTK) and Universal Dependencies (e.g. via SpaCy)-tagged corpora. This expects either raw text, or corpora that have already been tagged which take the form of a list of (document) lists of (sentence) lists of (token, tag) tuples, as in the example below.

Penn Treebank Tags

from yellowbrick.text import PosTagVisualizer


tagged_stanzas = [
    [
        [
            ('Whose', 'JJ'),('woods', 'NNS'),('these', 'DT'),
            ('are', 'VBP'),('I', 'PRP'),('think', 'VBP'),('I', 'PRP'),
            ('know', 'VBP'),('.', '.')
            ],
        [
            ('His', 'PRP$'),('house', 'NN'),('is', 'VBZ'),('in', 'IN'),
            ('the', 'DT'),('village', 'NN'),('though', 'IN'),(';', ':'),
            ('He', 'PRP'),('will', 'MD'),('not', 'RB'),('see', 'VB'),
            ('me', 'PRP'),('stopping', 'VBG'), ('here', 'RB'),('To', 'TO'),
            ('watch', 'VB'),('his', 'PRP$'),('woods', 'NNS'),('fill', 'VB'),
            ('up', 'RP'),('with', 'IN'),('snow', 'NNS'),('.', '.')
            ]
        ],
    [
        [
            ('My', 'PRP$'),('little', 'JJ'),('horse', 'NN'),('must', 'MD'),
            ('think', 'VB'),('it', 'PRP'),('queer', 'JJR'),('To', 'TO'),
            ('stop', 'VB'),('without', 'IN'),('a', 'DT'),('farmhouse', 'NN'),
            ('near', 'IN'),('Between', 'NNP'),('the', 'DT'),('woods', 'NNS'),
            ('and', 'CC'),('frozen', 'JJ'),('lake', 'VB'),('The', 'DT'),
            ('darkest', 'JJS'),('evening', 'NN'),('of', 'IN'),('the', 'DT'),
            ('year', 'NN'),('.', '.')
            ]
        ],
    [
        [
            ('He', 'PRP'),('gives', 'VBZ'),('his', 'PRP$'),('harness', 'NN'),
            ('bells', 'VBZ'),('a', 'DT'),('shake', 'NN'),('To', 'TO'),
            ('ask', 'VB'),('if', 'IN'),('there', 'EX'),('is', 'VBZ'),
            ('some', 'DT'),('mistake', 'NN'),('.', '.')
            ],
        [
            ('The', 'DT'),('only', 'JJ'),('other', 'JJ'),('sound', 'NN'),
            ('’', 'NNP'),('s', 'VBZ'),('the', 'DT'),('sweep', 'NN'),
            ('Of', 'IN'),('easy', 'JJ'),('wind', 'NN'),('and', 'CC'),
            ('downy', 'JJ'),('flake', 'NN'),('.', '.')
            ]
        ],
    [
        [
            ('The', 'DT'),('woods', 'NNS'),('are', 'VBP'),('lovely', 'RB'),
            (',', ','),('dark', 'JJ'),('and', 'CC'),('deep', 'JJ'),(',', ','),
            ('But', 'CC'),('I', 'PRP'),('have', 'VBP'),('promises', 'NNS'),
            ('to', 'TO'),('keep', 'VB'),(',', ','),('And', 'CC'),('miles', 'NNS'),
            ('to', 'TO'),('go', 'VB'),('before', 'IN'),('I', 'PRP'),
            ('sleep', 'VBP'),(',', ','),('And', 'CC'),('miles', 'NNS'),
            ('to', 'TO'),('go', 'VB'),('before', 'IN'),('I', 'PRP'),
            ('sleep', 'VBP'),('.', '.')
            ]
    ]
]

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer()
viz.fit(tagged_stanzas)
viz.show()

(Source code, png, pdf)

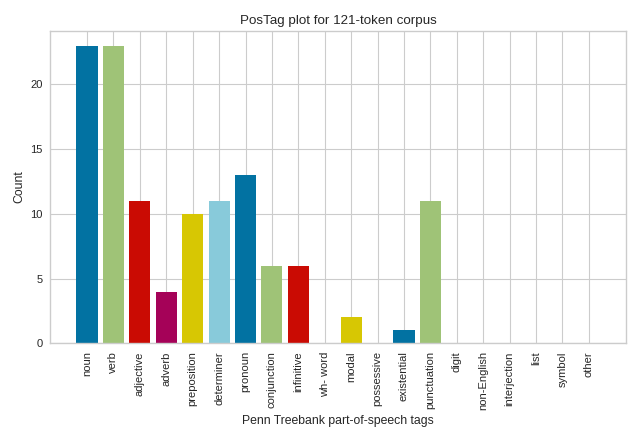

PosTag plot with Penn Treebank tags

Universal Dependencies Tags

Libraries like SpaCy use tags from the Universal Dependencies (UD) framework. The PosTagVisualizer can also be used with text tagged using this framework by specifying the tagset keyword as “universal” on instantiation.

from yellowbrick.text import PosTagVisualizer

tagged_speech = [
    [
        [
            ('In', 'ADP'),('all', 'DET'),('honesty', 'NOUN'),(',', 'PUNCT'),
            ('I', 'PRON'),('said', 'VERB'),('yes', 'INTJ'),('to', 'ADP'),
            ('the', 'DET'),('fear', 'NOUN'),('of', 'ADP'),('being', 'VERB'),
            ('on', 'ADP'),('this', 'DET'),('stage', 'NOUN'),('tonight', 'NOUN'),
            ('because', 'ADP'),('I', 'PRON'),('wanted', 'VERB'),('to', 'PART'),
            ('be', 'VERB'),('here', 'ADV'),(',', 'PUNCT'),('to', 'PART'),
            ('look', 'VERB'),('out', 'PART'),('into', 'ADP'),('this', 'DET'),
            ('audience', 'NOUN'),(',', 'PUNCT'),('and', 'CCONJ'),
            ('witness', 'VERB'),('this', 'DET'),('moment', 'NOUN'),('of', 'ADP'),
            ('change', 'NOUN')
            ],
        [
            ('and', 'CCONJ'),('I', 'PRON'),("'m", 'VERB'),('not', 'ADV'),
            ('fooling', 'VERB'),('myself', 'PRON'),('.', 'PUNCT')
            ],
        [
            ('I', 'PRON'),("'m", 'VERB'),('not', 'ADV'),('fooling', 'VERB'),
            ('myself', 'PRON'),('.', 'PUNCT')
            ],
        [
            ('Next', 'ADJ'),('year', 'NOUN'),('could', 'VERB'),('be', 'VERB'),
            ('different', 'ADJ'),('.', 'PUNCT')
            ],
        [
            ('It', 'PRON'),('probably', 'ADV'),('will', 'VERB'),('be', 'VERB'),
            (',', 'PUNCT'),('but', 'CCONJ'),('right', 'ADV'),('now', 'ADV'),
            ('this', 'DET'),('moment', 'NOUN'),('is', 'VERB'),('real', 'ADJ'),
            ('.', 'PUNCT')
            ],
        [
            ('Trust', 'VERB'),('me', 'PRON'),(',', 'PUNCT'),('it', 'PRON'),
            ('is', 'VERB'),('real', 'ADJ'),('because', 'ADP'),('I', 'PRON'),
            ('see', 'VERB'),('you', 'PRON')
            ],
        [
            ('and', 'CCONJ'), ('I', 'PRON'), ('see', 'VERB'), ('you', 'PRON')
            ],
        [
            ('—', 'PUNCT')
            ],
        [
            ('all', 'ADJ'),('these', 'DET'),('faces', 'NOUN'),('of', 'ADP'),
            ('change', 'NOUN')
            ],
        [
            ('—', 'PUNCT'),('and', 'CCONJ'),('now', 'ADV'),('so', 'ADV'),
            ('will', 'VERB'),('everyone', 'NOUN'),('else', 'ADV'), ('.', 'PUNCT')
            ]
    ]
]

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer(tagset="universal")
viz.fit(tagged_speech)
viz.show()

(Source code, png, pdf)

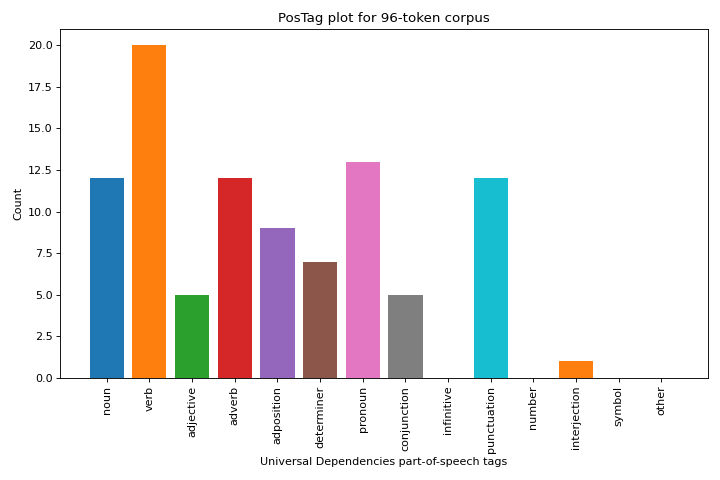

../../_images/postag-2.png

Quick Method

The same functionality above can be achieved with the associated quick method postag. This method will build the PosTagVisualizer object with the associated arguments, fit it, then (optionally) immediately show the visualization.

from yellowbrick.text.postag import postag

machado = [
    [
        [
            ('Last', 'JJ'), ('night', 'NN'), ('as', 'IN'), ('I', 'PRP'),
            ('was', 'VBD'), ('sleeping', 'VBG'), (',', ','), ('I', 'PRP'),
            ('dreamt', 'VBP'), ('—', 'RB'), ('marvelous', 'JJ'), ('error', 'NN'),
            ('!—', 'IN'), ('that', 'DT'), ('I', 'PRP'), ('had', 'VBD'), ('a', 'DT'),
            ('beehive', 'NN'), ('here', 'RB'), ('inside', 'IN'), ('my', 'PRP$'),
            ('heart', 'NN'), ('.', '.')
            ],
        [
            ('And', 'CC'), ('the', 'DT'), ('golden', 'JJ'), ('bees', 'NNS'),
            ('were', 'VBD'), ('making', 'VBG'), ('white', 'JJ'), ('combs', 'NNS'),
            ('and', 'CC'), ('sweet', 'JJ'), ('honey', 'NN'), ('from', 'IN'),
            ('my', 'PRP$'), ('old', 'JJ'), ('failures', 'NNS'), ('.', '.')
            ]
    ]
]

# Create the visualizer, fit, score, and show it
postag(machado)

(Source code, png, pdf)

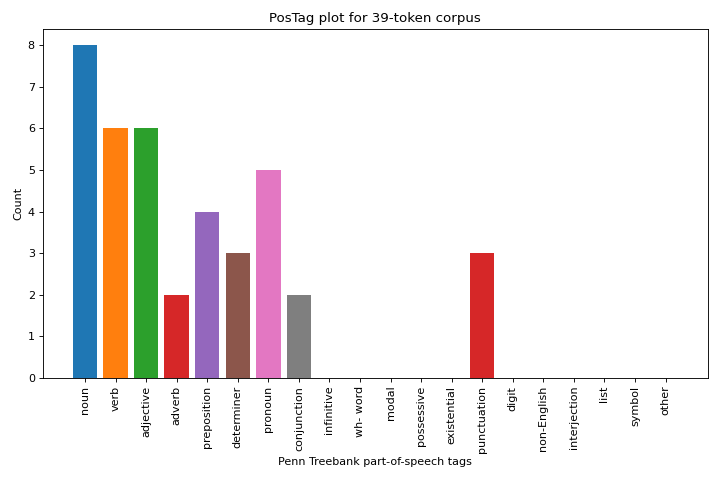

postag quick method with Penn Treebank tags

Part of Speech Tags

Penn-Treebank Tag

Description

Universal Tag

Description

CC

Coordinating conjunction

ADJ

adjective

CD

Cardinal number

ADP

adposition

DT

Determiner

ADV

adverb

EX

Existential there

AUX

auxiliary

FW

Foreign word

CONJ

conjunction

IN

Preposition or subordinating conjunction

CCONJ

coordinating conjunction

JJ

Adjective

DET

determiner

JJR

Adjective, comparative

INTJ

interjection

JJS

Adjective, superlative

NOUN

noun

LS

List item marker

NUM

numeral

MD

Modal

PART

particle

NN

Noun, singular or mass

PRON

pronoun

NNS

Noun, plural

PROPN

proper noun

NNP

Proper noun, singular

PUNCT

punctuation

NNPS

Proper noun, plural

SCONJ

subordinating conjunction

PDT

Predeterminer

SYM

symbol

POS

Possessive ending

VERB

verb

PRP

Personal pronoun

X

other

PRP$

Possessive pronoun

SPACE

space

RB

Adverb

RBR

Adverb, comparative

RBS

Adverb, superlative

RP

Particle

SYM

Symbol

TO

to

UH

Interjection

VB

Verb, base form

VBD

Verb, past tense

VBG

Verb, gerund or present participle

VBN

Verb, past participle

VBP

Verb, non-3rd person singular present

VBZ

Verb, 3rd person singular present

WDT

Wh-determiner

WP

Wh-pronoun

WP$

Possessive wn-pronoun

WRB

Wh-adverb

Parsing raw text automatically

The PosTagVisualizer can also be used with untagged text by using the parse keyword on instantiation. The keyword to parse indicates which natural language processing library to use. To use spacy:

untagged_speech = u'Whose woods these are I think I know'

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer(parser='spacy')
viz.fit(untagged_speech)
viz.show()

Or, using the nltk parser.

untagged_speech = u'Whose woods these are I think I know'

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer(parser='nltk')
viz.fit(untagged_speech)
viz.show()

Note

To use either of these parsers, either nltk or spacy must already be installed in your environment.

You can also change the tagger used. For example, using nltk you can select either word (default):

untagged_speech = u'Whose woods these are I think I know'

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer(parser='nltk_word')
viz.fit(untagged_speech)
viz.show()

Or using wordpunct.

untagged_speech = u'Whose woods these are I think I know'

# Create the visualizer, fit, score, and show it
viz = PosTagVisualizer(parser='nltk_wordpunct')
viz.fit(untagged_speech)
viz.show()

API Reference

Implementation of part-of-speech visualization for text, enabling the user to visualize a single document or small subset of documents.

class yellowbrick.text.postag.PosTagVisualizer(ax=None, tagset='penn_treebank', colormap=None, colors=None, frequency=False, stack=False, parser=None, **kwargs)[source]

Bases: TextVisualizer

Parts of speech (e.g. verbs, nouns, prepositions, adjectives) indicate how a word is functioning within the context of a sentence. In English as in many other languages, a single word can function in multiple ways. Part-of-speech tagging lets us encode information not only about a word’s definition, but also its use in context (for example the words “ship” and “shop” can be either a verb or a noun, depending on the context).

The PosTagVisualizer creates a bar chart to visualize the relative proportions of different parts-of-speech in a corpus.

Note that the PosTagVisualizer requires documents to already be part-of-speech tagged; the visualizer expects the corpus to come in the form of a list of (document) lists of (sentence) lists of (tag, token) tuples.

Parameters
axmatplotlib axes

The axes to plot the figure on.

tagset: string

The tagset that was used to perform part-of-speech tagging. Either “penn_treebank” or “universal”, defaults to “penn_treebank”. Use “universal” if corpus has been tagged using SpaCy.

colorslist or tuple of strings

Specify the colors for each individual part-of-speech. Will override colormap if both are provided.

colormapstring or matplotlib cmap

Specify a colormap to color the parts-of-speech.

frequency: bool {True, False}, default: False

If set to True, part-of-speech tags will be plotted according to frequency, from most to least frequent.

stackbool {True, False}, defaultFalse

Plot the PosTag frequency chart as a per-class stacked bar chart. Note that fit() requires y for this visualization.

parserstring or None, default: None

If set to a string, string must be in the form of ‘parser_tagger’ or ‘parser’ to use defaults (for spacy this is ‘en_core_web_sm’, for nltk this is ‘word’). The ‘parser’ argument is one of the accepted parsing libraries. Currently ‘nltk’ and ‘spacy’ are the only accepted libraries. NLTK or SpaCy must be installed into your environment. ‘tagger’ is the tagset to use. For example ‘nltk_wordpunct’ would use the NLTK library with ‘wordpunct’ tagset. Or ‘spacy_en_core_web_sm’ would use SpaCy with the ‘en_core_web_sm’ tagset.

kwargsdict

Pass any additional keyword arguments to the PosTagVisualizer.

Examples

>>> viz = PosTagVisualizer()
>>> viz.fit(X)
>>> viz.show()
Attributes
pos_tag_counts_: dict

Mapping of part-of-speech tags to counts.

draw(**kwargs)[source]

Called from the fit method, this method creates the canvas and draws the part-of-speech tag mapping as a bar chart.

Parameters
kwargs: dict

generic keyword arguments.

Returns
axmatplotlib axes

Axes on which the PosTagVisualizer was drawn.

finalize(**kwargs)[source]

Finalize the plot with ticks, labels, and title

Parameters
kwargs: dict

generic keyword arguments.

fit(X, y=None, **kwargs)[source]

Fits the corpus to the appropriate tag map. Text documents must be tokenized & tagged before passing to fit if the ‘parse’ argument has not been specified at initialization. Otherwise X can be a raw text ready to be parsed.

Parameters
Xlist or generator or str (raw text)

Should be provided as a list of documents or a generator that yields a list of documents that contain a list of sentences that contain (token, tag) tuples. If X is a string, the ‘parse’ argument should be specified as ‘nltk’ or ‘spacy’ in order to parse the raw documents.

yndarray or Series of length n

An optional array of target values that are ignored by the visualizer.

kwargsdict

Pass generic arguments to the drawing method

Returns
selfinstance

Returns the instance of the transformer/visualizer

parse_nltk(X)[source]

Tag a corpora using NLTK tagging (Penn-Treebank) to produce a generator of tagged documents in the form of a list of (document) lists of (sentence) lists of (token, tag) tuples.

Parameters
Xstr (raw text) or list of paragraphs (containing str)
parse_spacy(X)[source]

Tag a corpora using SpaCy tagging (Universal Dependencies) to produce a generator of tagged documents in the form of a list of (document) lists of (sentence) lists of (token, tag) tuples.

Parameters
Xstr (raw text) or list of paragraphs (containing str)
property parser
show(outpath=None, **kwargs)[source]

Makes the magic happen and a visualizer appear! You can pass in a path to save the figure to disk with various backends, or you can call it with no arguments to show the figure either in a notebook or in a GUI window that pops up on screen.

Parameters
outpath: string, default: None

path or None. Save figure to disk or if None show in window

clear_figure: boolean, default: False

When True, this flag clears the figure after saving to file or showing on screen. This is useful when making consecutive plots.

kwargs: dict

generic keyword arguments.

Notes

Developers of visualizers don’t usually override show, as it is primarily called by the user to render the visualization.

yellowbrick.text.postag.postag(X, y=None, ax=None, tagset='penn_treebank', colormap=None, colors=None, frequency=False, stack=False, parser=None, show=True, **kwargs)[source]

Display a barchart with the counts of different parts of speech in X, which consists of a part-of-speech-tagged corpus, which the visualizer expects to be a list of lists of lists of (token, tag) tuples.

Parameters
Xlist or generator

Should be provided as a list of documents or a generator that yields a list of documents that contain a list of sentences that contain (token, tag) tuples.

yndarray or Series of length n

An optional array of target values that are ignored by the visualizer.

axmatplotlib axes

The axes to plot the figure on.

tagset: string

The tagset that was used to perform part-of-speech tagging. Either “penn_treebank” or “universal”, defaults to “penn_treebank”. Use “universal” if corpus has been tagged using SpaCy.

colorslist or tuple of colors

Specify the colors for each individual part-of-speech.

colormapstring or matplotlib cmap

Specify a colormap to color the parts-of-speech.

frequency: bool {True, False}, default: False

If set to True, part-of-speech tags will be plotted according to frequency, from most to least frequent.

stackbool {True, False}, defaultFalse

Plot the PosTag frequency chart as a per-class stacked bar chart. Note that fit() requires y for this visualization.

parserstring or None, default: None

If set to a string, string must be in the form of ‘parser_tagger’ or ‘parser’ to use defaults (for spacy this is ‘en_core_web_sm’, for nltk this is ‘word’). The ‘parser’ argument is one of the accepted parsing libraries. Currently ‘nltk’ and ‘spacy’ are the only accepted libraries. NLTK or SpaCy must be installed into your environment. ‘tagger’ is the tagset to use. For example ‘nltk_wordpunct’ would use the NLTK library with ‘wordpunct’ tagset. Or ‘spacy_en_core_web_sm’ would use SpaCy with the ‘en_core_web_sm’ tagset.

show: bool, default: True

If True, calls show(), which in turn calls plt.show() however you cannot call plt.savefig from this signature, nor clear_figure. If False, simply calls finalize()

kwargsdict

Pass any additional keyword arguments to the PosTagVisualizer.

Returns
visualizer: PosTagVisualizer

Returns the fitted, finalized visualizer
