Yellowbrick’s quick methods are visualizers in a single line of code!
Yellowbrick is designed to give you as much control as you would like over the plots you create, offering parameters to help you customize everything from color, size, and title to preferred evaluation or correlation measure, optional bestfit lines or histograms, and cross validation techniques. To learn more about how to customize your visualizations using those parameters, check out the Visualizers and API.
But… sometimes you just want to build a plot with a single line of code!
On this page we’ll explore the Yellowbrick quick methods (aka “oneliners”), which return a fully fitted, finalized visualizer object in only a single line.
This page illustrates oneliners for some of our most popular visualizers for feature analysis, classification, regression, clustering, and target evaluation, but is not a comprehensive list. Nearly every Yellowbrick visualizer has an associated quick method!

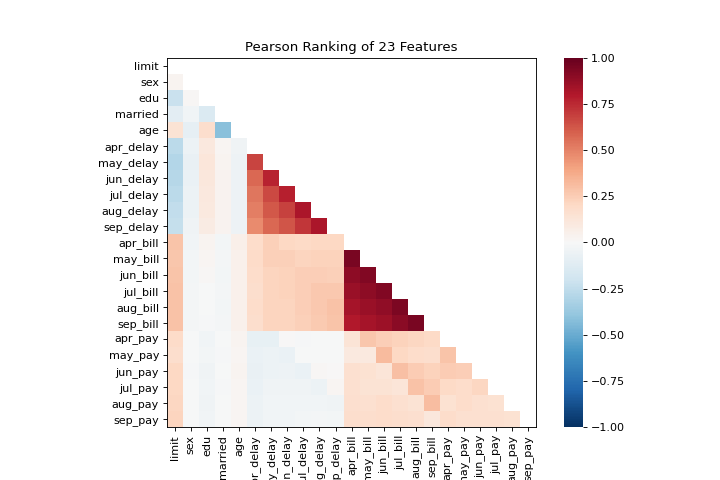

rank2d plots show pairwise rankings of features to help you detect relationships. More about Rank Features.
from yellowbrick.features import rank2d from yellowbrick.datasets import load_credit X, _ = load_credit() visualizer = rank2d(X)

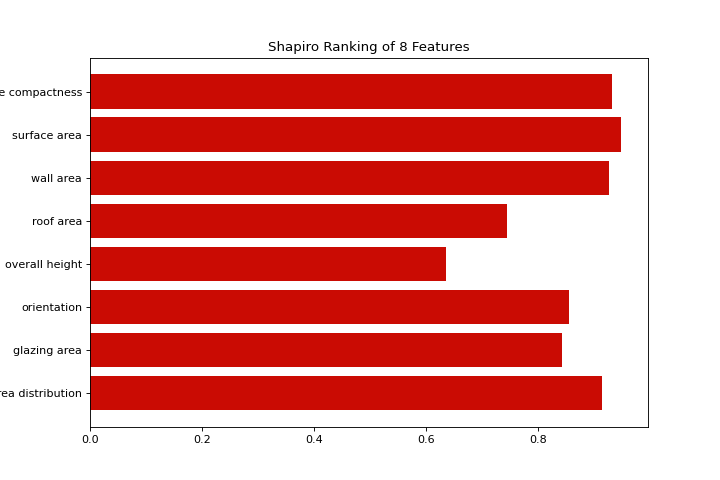

from yellowbrick.features import rank1d from yellowbrick.datasets import load_energy X, _ = load_energy() visualizer = rank1d(X, color="r")

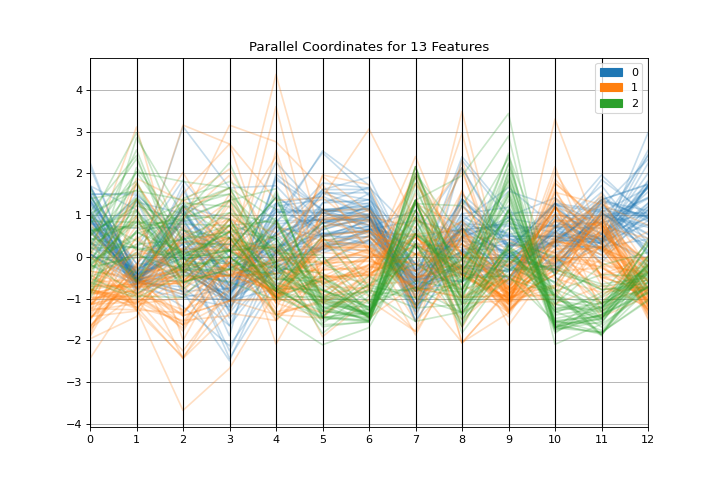

parallel_coordinates plot is a horizontal visualization of instances, disaggregated by the features that describe them. More about Parallel Coordinates.
from sklearn.datasets import load_wine from yellowbrick.features import parallel_coordinates X, y = load_wine(return_X_y=True) visualizer = parallel_coordinates(X, y, normalize="standard")
radviz plot shows the separation of instances around a unit circle. More about RadViz Visualizer.
from yellowbrick.features import radviz from yellowbrick.datasets import load_occupancy X, y = load_occupancy() visualizer = radviz(X, y, colors=["maroon", "gold"])
pca_decomposition is a projection of instances based on principal components. More about PCA Projection.
from yellowbrick.datasets import load_spam from yellowbrick.features import pca_decomposition X, y = load_spam() visualizer = pca_decomposition(X, y)
manifold_embedding plot is a high dimensional visualization with manifold learning, which can show nonlinear relationships in the features. More about Manifold Visualization.
from sklearn.datasets import load_iris from yellowbrick.features import manifold_embedding X, y = load_iris(return_X_y=True) visualizer = manifold_embedding(X, y)
Class Prediction Error¶
class_prediction_error plot illustrates the error and support in a classification as a bar chart. More about Class Prediction Error.
from yellowbrick.datasets import load_game from sklearn.preprocessing import OneHotEncoder from sklearn.ensemble import RandomForestClassifier from yellowbrick.classifier import class_prediction_error X, y = load_game() X = OneHotEncoder().fit_transform(X) visualizer = class_prediction_error( RandomForestClassifier(n_estimators=10), X, y )
classification_report is a visual representation of precision, recall, and F1 score. More about Classification Report.
from yellowbrick.datasets import load_credit from sklearn.ensemble import RandomForestClassifier from yellowbrick.classifier import classification_report X, y = load_credit() visualizer = classification_report( RandomForestClassifier(n_estimators=10), X, y )

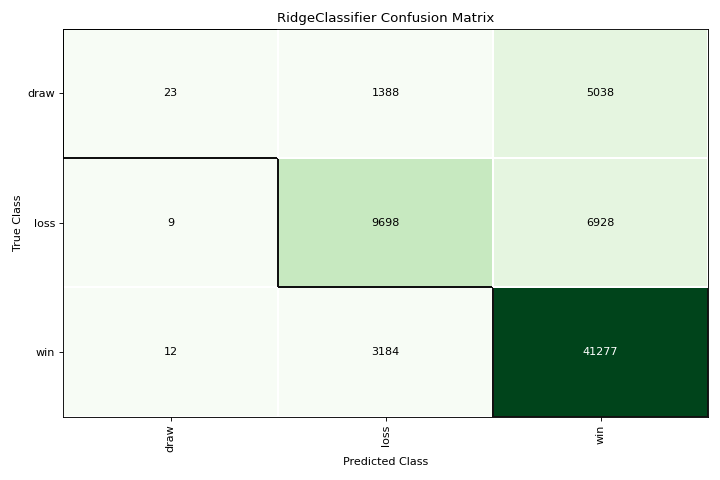

confusion_matrix is a visual description of per-class decision making. More about Confusion Matrix.
from yellowbrick.datasets import load_game from sklearn.preprocessing import OneHotEncoder from sklearn.linear_model import RidgeClassifier from yellowbrick.classifier import confusion_matrix X, y = load_game() X = OneHotEncoder().fit_transform(X) visualizer = confusion_matrix(RidgeClassifier(), X, y, cmap="Greens")
precision_recall_curve shows the tradeoff between precision and recall for different probability thresholds. More about Precision-Recall Curves.
from sklearn.naive_bayes import GaussianNB from yellowbrick.datasets import load_occupancy from yellowbrick.classifier import precision_recall_curve X, y = load_occupancy() visualizer = precision_recall_curve(GaussianNB(), X, y)

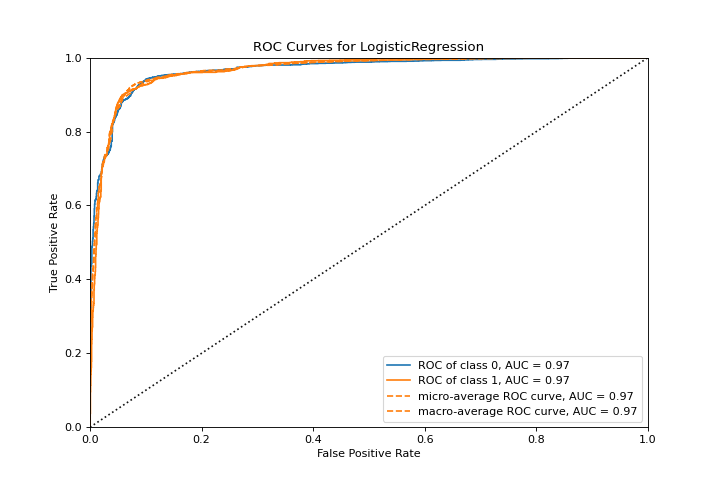

roc_auc plot shows the receiver operator characteristics and area under the curve. More about ROCAUC.
from yellowbrick.classifier import roc_auc from yellowbrick.datasets import load_spam from sklearn.linear_model import LogisticRegression X, y = load_spam() visualizer = roc_auc(LogisticRegression(), X, y)

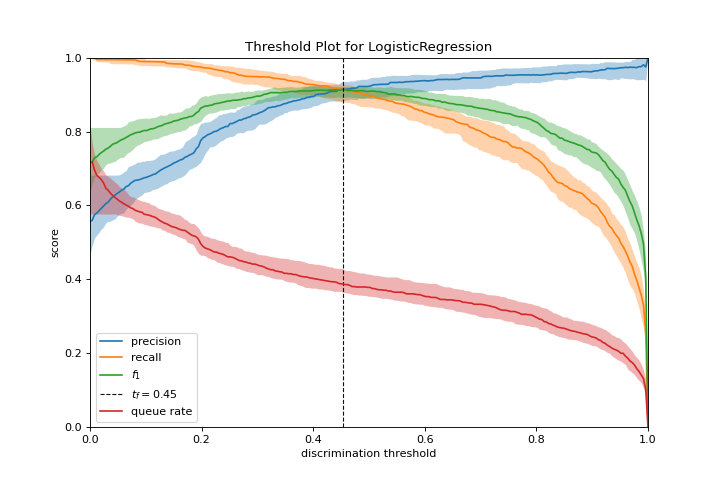

discrimination_threshold plot can help find a threshold that best separates binary classes. More about Discrimination Threshold.
from yellowbrick.classifier import discrimination_threshold from sklearn.linear_model import LogisticRegression from yellowbrick.datasets import load_spam X, y = load_spam() visualizer = discrimination_threshold( LogisticRegression(multi_class="auto", solver="liblinear"), X, y )
residuals_plot shows the difference in residuals between the training and test data. More about Residuals Plot.
from sklearn.linear_model import Ridge from yellowbrick.datasets import load_concrete from yellowbrick.regressor import residuals_plot X, y = load_concrete() visualizer = residuals_plot( Ridge(), X, y, train_color="maroon", test_color="gold" )
prediction_error helps find where the regression is making the most errors. More about Prediction Error Plot.
from sklearn.linear_model import Lasso from yellowbrick.datasets import load_bikeshare from yellowbrick.regressor import prediction_error X, y = load_bikeshare() visualizer = prediction_error(Lasso(), X, y)
cooks_distance plot shows the influence of instances on linear regression. More about Cook’s Distance.
from sklearn.datasets import load_diabetes from yellowbrick.regressor import cooks_distance X, y = load_diabetes(return_X_y=True) visualizer = cooks_distance(X, y)

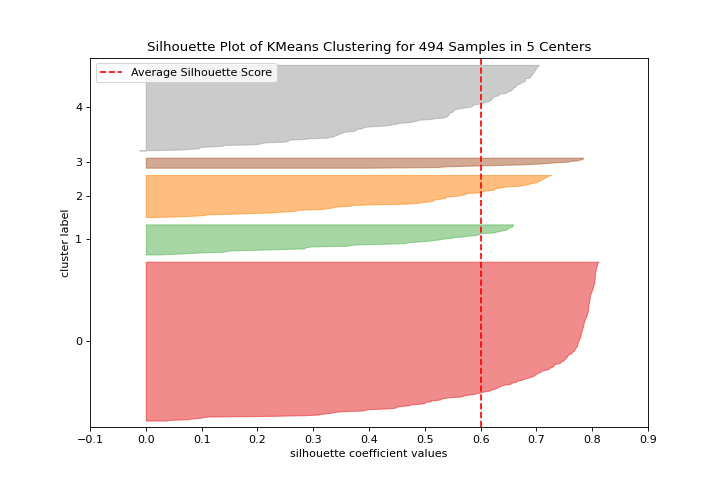

silhouette_visualizer can help you select
k by visualizing silhouette coefficient values. More about Silhouette Visualizer.
from sklearn.cluster import KMeans from yellowbrick.datasets import load_nfl from yellowbrick.cluster import silhouette_visualizer X, y = load_nfl() visualizer = silhouette_visualizer(KMeans(5, random_state=42), X)

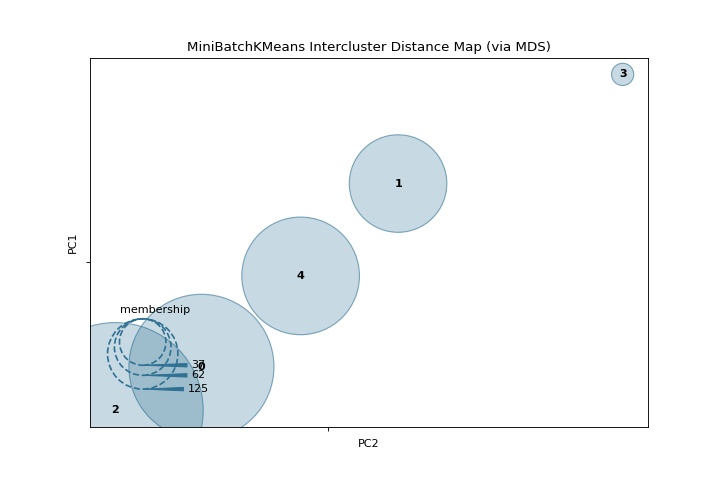

intercluster_distance shows size and relative distance between clusters. More about Intercluster Distance Maps.
from yellowbrick.datasets import load_nfl from sklearn.cluster import MiniBatchKMeans from yellowbrick.cluster import intercluster_distance X, y = load_nfl() visualizer = intercluster_distance(MiniBatchKMeans(5, random_state=777), X)
class_balance plot can make it easier to see how the distribution of classes may affect the model. More about Class Balance.
from yellowbrick.datasets import load_game from yellowbrick.target import class_balance X, y = load_game() visualizer = class_balance(y, labels=["draw", "loss", "win"])
